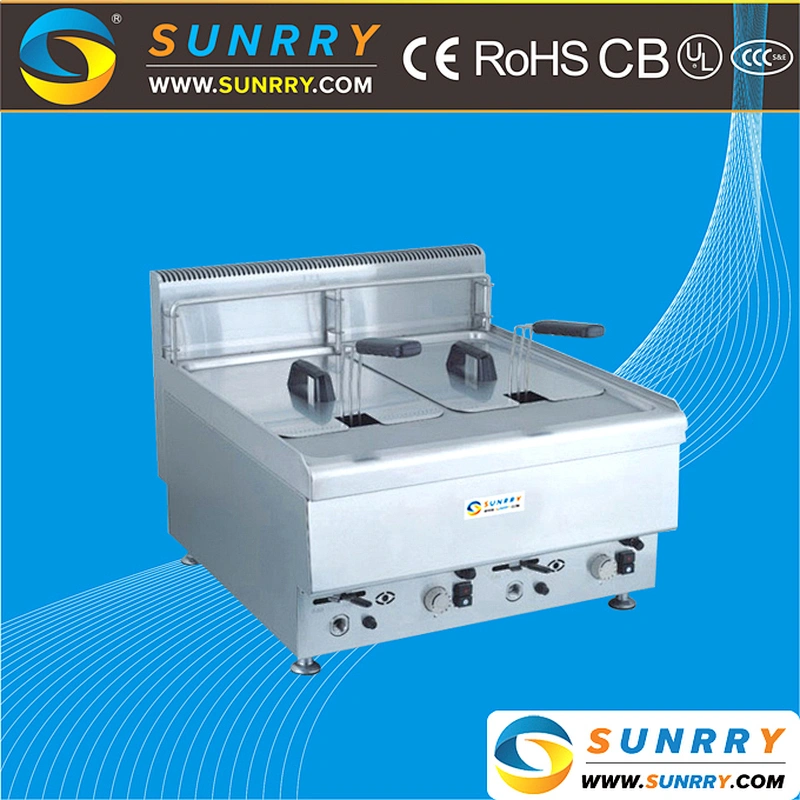

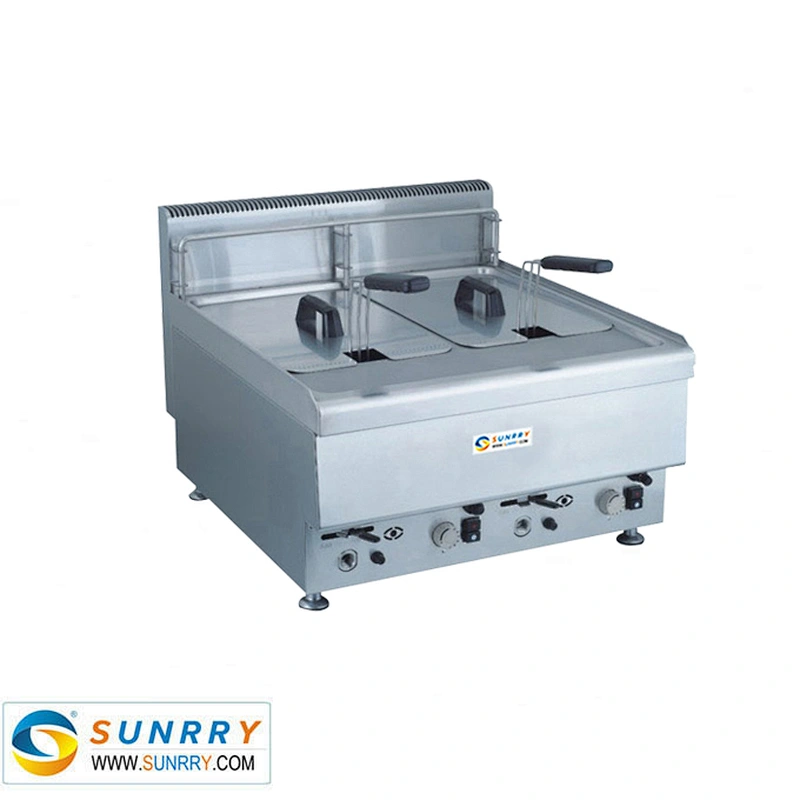

Commercial Gas Chips Fryer Machine Countertop 10L Liters CE Approved Potato Frying Machine
Specification of chips fryer machine:
Dimension(mm): 600*650*475
Height of working table(mm): 335
Working capacity of tank(L/tank): 8-10
Gas type: LPG Gas pressure(Pa): 2800-3700
Gas consumption(Kg/h): 0.5*2
Gas type: NG Gas pressure(Pa): 2000-2500
Gas consumption(cubic meter/h): 0.6*2
Power(Kw): 2*5.6 / 38214
Temperature('c): 120-200
Drainage outlet size: R 1/2"
Gas inlet size: R 1/2"
Weight(Kg): 36
The features of gas frying machine:
Stainless steel
Easy cleaning
Automatic temperature controlled, temperature range: 120-200'c
Overtemperature protection function; Hi-limit temperature is 238'c 1/2"gas inlet
Heavy duty stainless steel tubular burners, flame failure protection device, pilot flame standby system, pulse ignition system
Suitable for various gases by replacing the type of nozzle
Adjustable foot
Full Parameters for SY-TF400/600 Series of Machines Frying Potatos
| Model | Dimension (MM) | Voltage | LPG Gas Pressure | Capacity | Drainage Outlet Size | Temperature | Weight |
| SY-TF400A | 400*650*475 | 380V 50Hz | 12.5-14.5 L | R 1/2" | 50-190 °C | 20Kg |
| SY-TF400B | 400*650*475 | 2800-3700Pa | 8-10L | R 1/2" | 120-200°C | 23Kg |
| SY-TF600A | 600*650*475 | 380V50Hz | 12.5-14.5* 2L | R 1/2" | 50-190 °C | 35Kg |
| SY-TF600B | 600*650*475 | 2800-3700Pa | 8-10* 2L | R 1/2" | 120-200°C | 36Kg |
| SY-TF600TA | 600*600*430 | 220-240V 50Hz | 6 * 2 L | N/A | N/A | 25 Kg |
| SY-TF600TB | 600*612*470 | 2800-3700Pa | 6 * 2L | N/A | N/A | 33 Kg |
Some parts of chips fryer machine:
More real pictures of gas frying machine:
