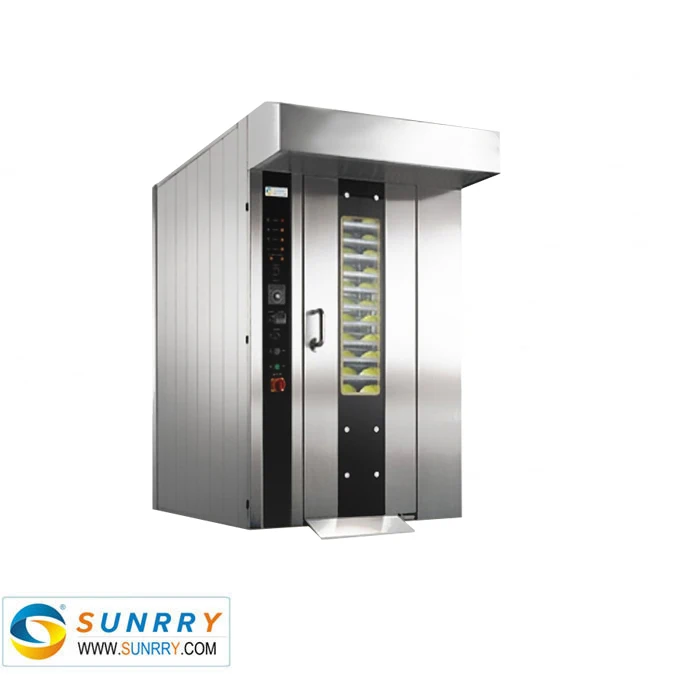

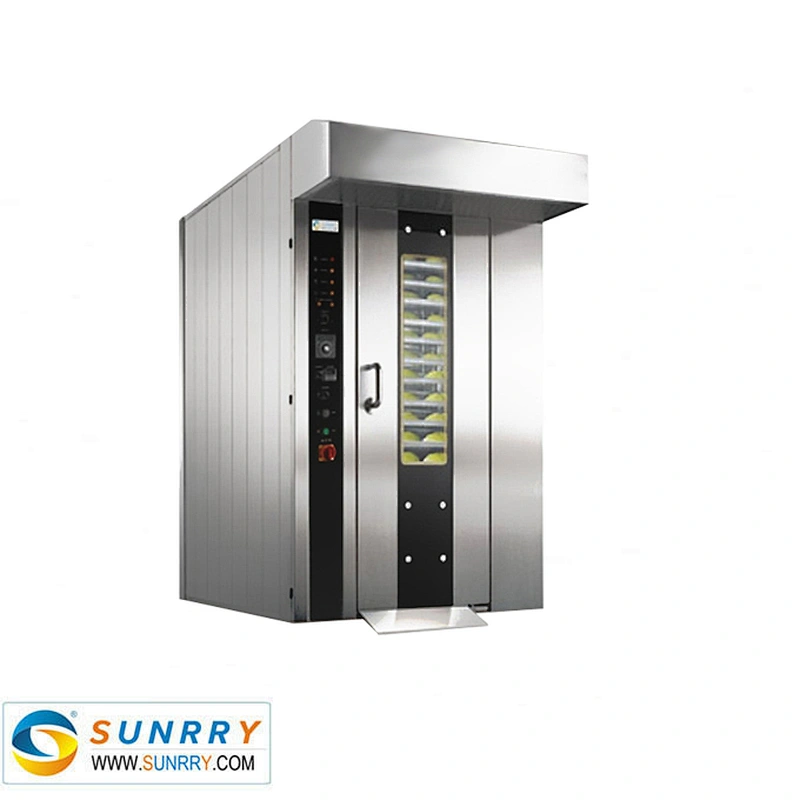

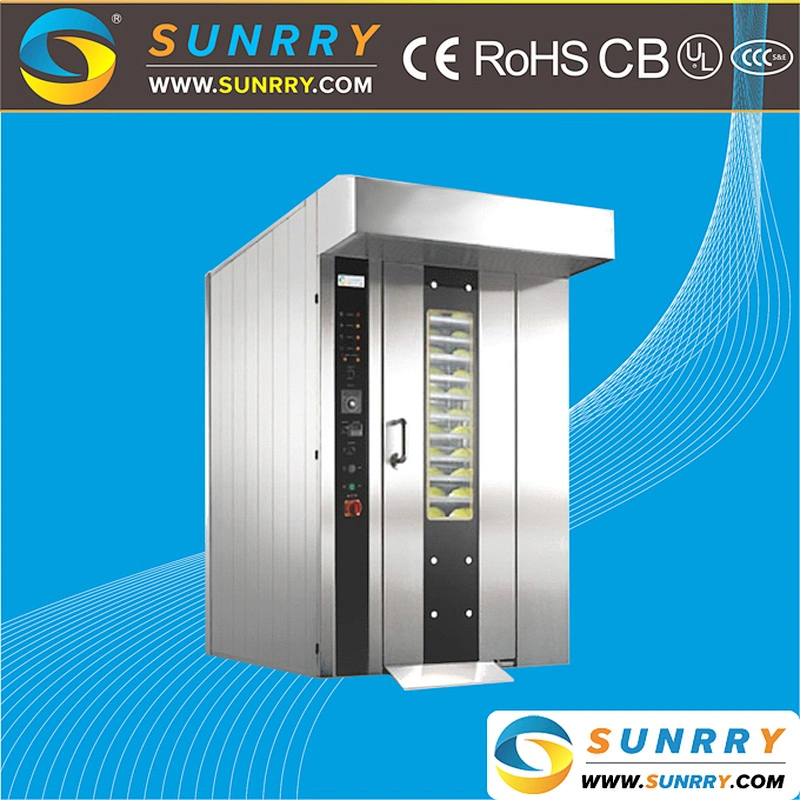

Rotary rack oven /oven rack/rack oven for CE(SY-RV16A SUNRRY)
16-Tray rotary rack oven
Voltage: 380V50Hz
Power: 35 kw
Capacity: 16 trays
Dimension: 1280*2280*2450 mm
Material: all stainless steel
Features:
1.A-level energy-saving and environment protection;A-level capacity
2.Fashionable automatically controlled panel persents the noble oven body
3.Electronically displaying baking data makes everything under-control
4.Our oven embodies endurable and lasting characteristic
5.Large backing capacity;one person can finish heavy workloads
Part of SY-RV Series Rotary Rack Oven Technical Parameter
Model | Fuel | Voltage | Power | Capacity | Door Frame Size | Trolley Size(L*W*H) | Dimension(mm) |
SY-RV16A | Electric | 380V 50Hz | 35 kw | 16 trays | 600*1830MM | 610*480*1760MM | 1280*2280*2450 |
SY-RV16B | Gas | 380V 50Hz | 3.1 kw | 16 trays | 600*1830MM | 610*480*1760MM | 1280*2280*2450 |
SY-RV16C | Diesel | 380V 50Hz | 3.1 kw | 16 trays | 600*1830MM | 610*480*1760MM | 1280*2280*2450 |
SY-RV32A | Electric | 380V 50Hz | 60 kw | 32 trays | 900*1830MM | 810*680*1760MM | 1660*2600*2450 |
SY-RV32B | Gas | 380V 50Hz | 3.5 kw | 32 trays | 900*1830MM | 810*680*1760MM | 1820*2660*2450 |
SY-RV32c | Diesel | 380V 50Hz | 3.5 kw | 32 trays | 900*1830MM | 810*680*1760MM | 1820*2600*2450 |
