Product Description

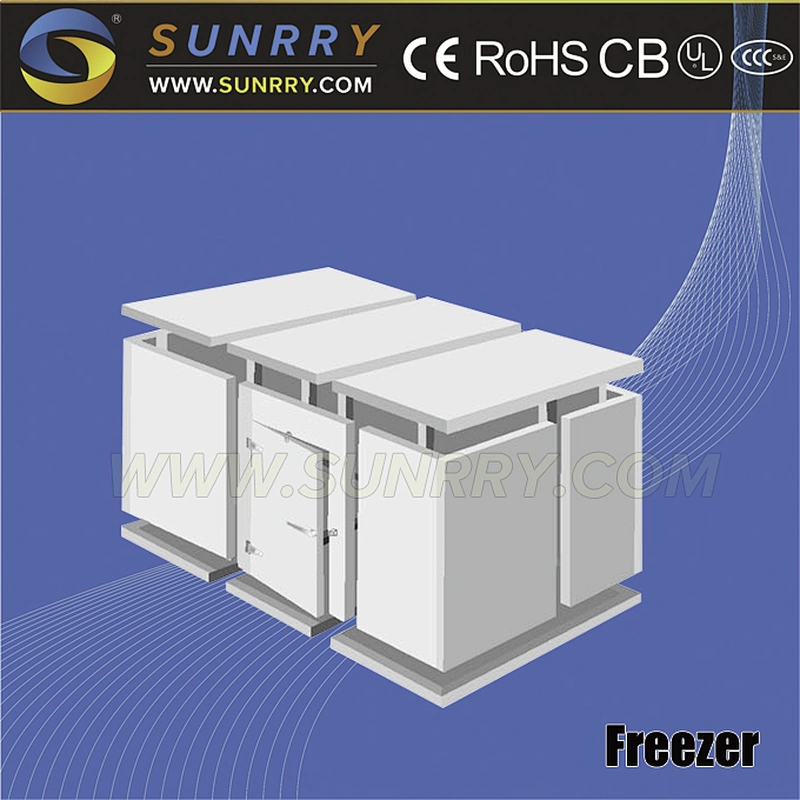

High quality cold room cold storage hardware with handle suppliers (SY-CR6R)
Specification for Modular Cold Room Cold Storage:
Overall dimension(L*W*H):2200*4000*2300mm
Door dimension(W*H):850*1850mm
Voltage: 220V/60Hz
Refrigerant: R404A
Temperature: 0°CType: Refrigerator

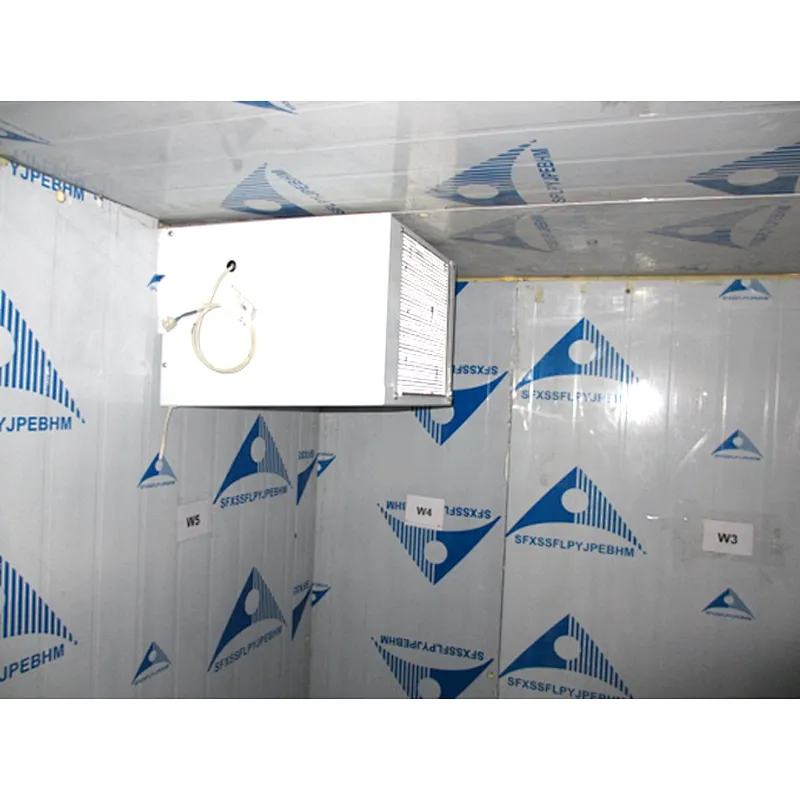

Cooling way: Ventilated (2HP , closed handpiece, Unit cooler: DL-4.3/20)
Feature for Chilled Cold Storage Room:
1.100mm thickness Polyurethane sandwiched panels with color-steel 0.326mm thickness both side
2.Standard convex hinged door with color-steel 0.326mm thickness both side
3.With drainage system
SY-CR6R Series Cold Room Door Hardware Suppliers Technical Parameter
| ITEM | TEMPERATURE | DIMENSION |
| SY-CR1R | 0 ~ 10 °C | 2200*3000*2000 MM |
| SY-CR2R | 0 ~ 10 °C | 2000*2000*2300 MM |
| SY-CR3R | 0 ~ 10 °C | 3000*2000*2300 MM |
| SY-CR4R | 0 ~ 10 °C | 3000*3000*2300 MM |
| SY-CR5R | 0 ~ 10 °C | 2100*2100*2300 MM |
| SY-CR6R | 0 ~ 10 °C | 2200*4000*2300 MM |
| SY-CR7R | 0 ~ 10 °C | 2300*4900*2300 MM |
| SY-CR8R | 0 ~ 10 °C | 2600*5100*2300 MM |
| SY-CR9R | 0 ~ 10 °C | 3100*7950*2300 MM |
| SY-CR10R | 0 ~ 10 °C | 3900*4000*2300 MM |
| SY-CR11R | 0 ~ 10 °C | 3900*4850*2300 MM |
| SY-CR12R | 0 ~ 10 °C | 4000*2320*2300 MM |
| SY-CR13R | 0 ~ 10 °C | 4240*2500*2300 MM |
| SY-CR14R | 0 ~ 10 °C | 4300*3000*2300 MM |
