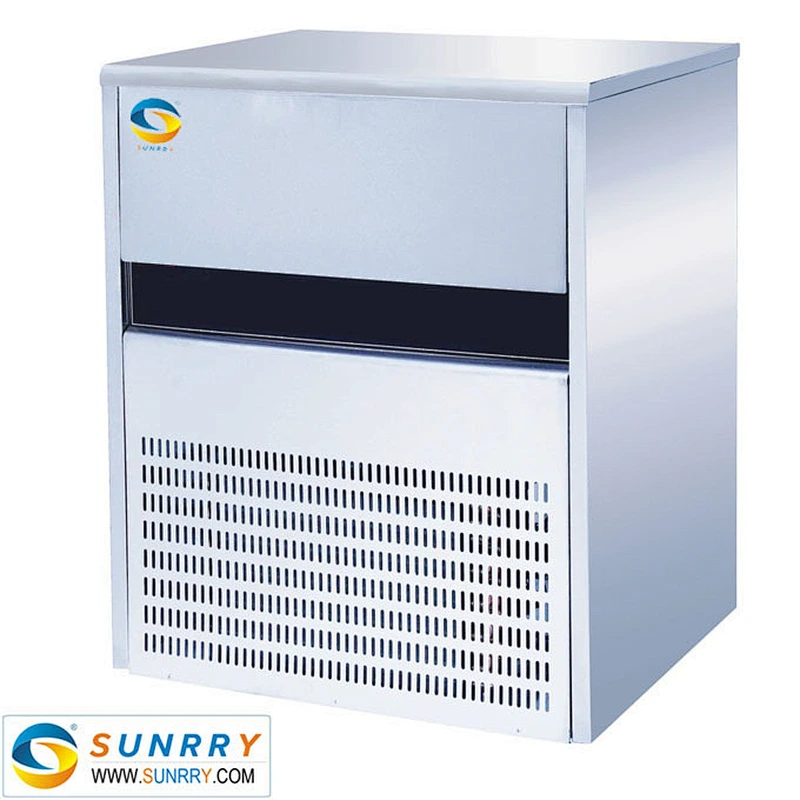

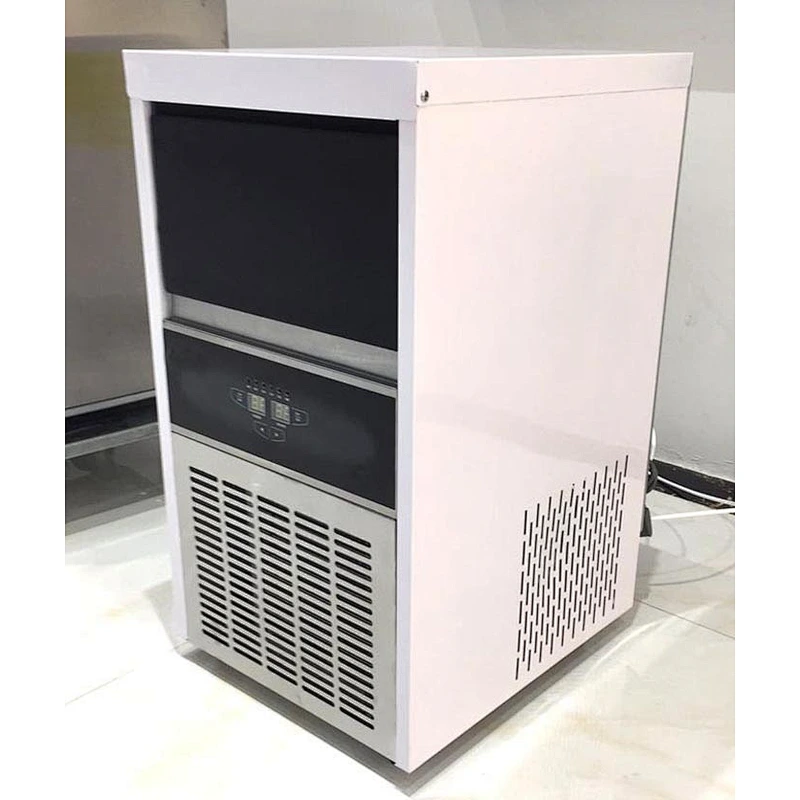

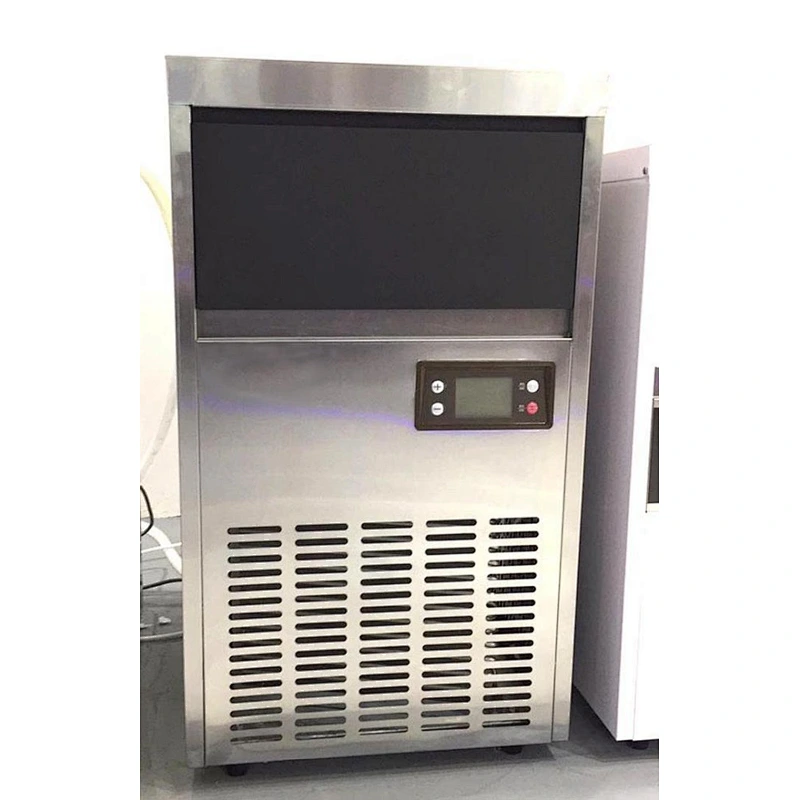

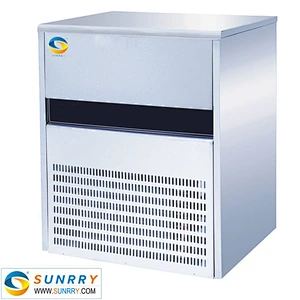

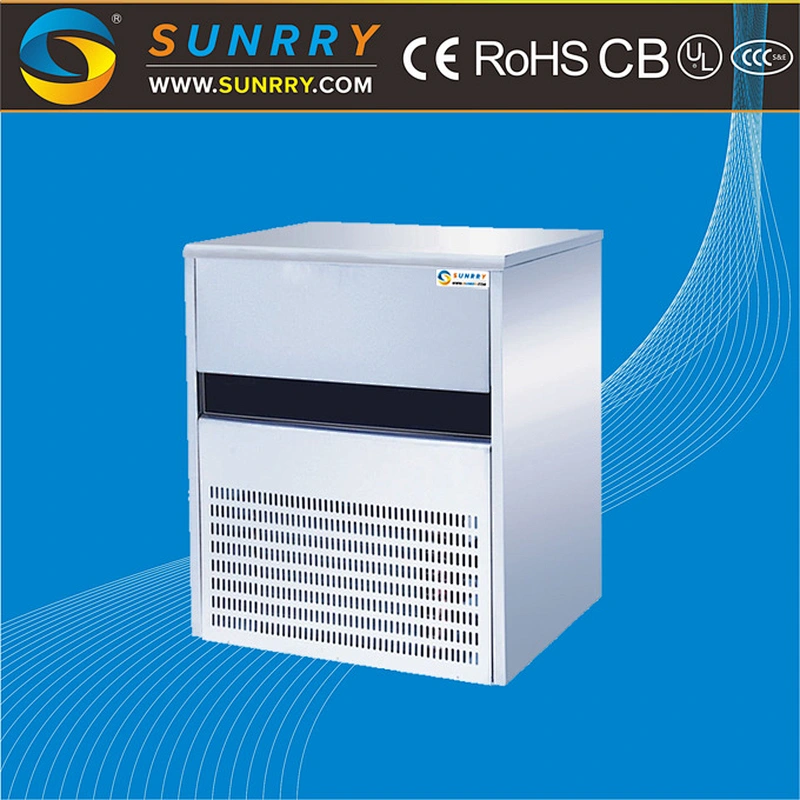

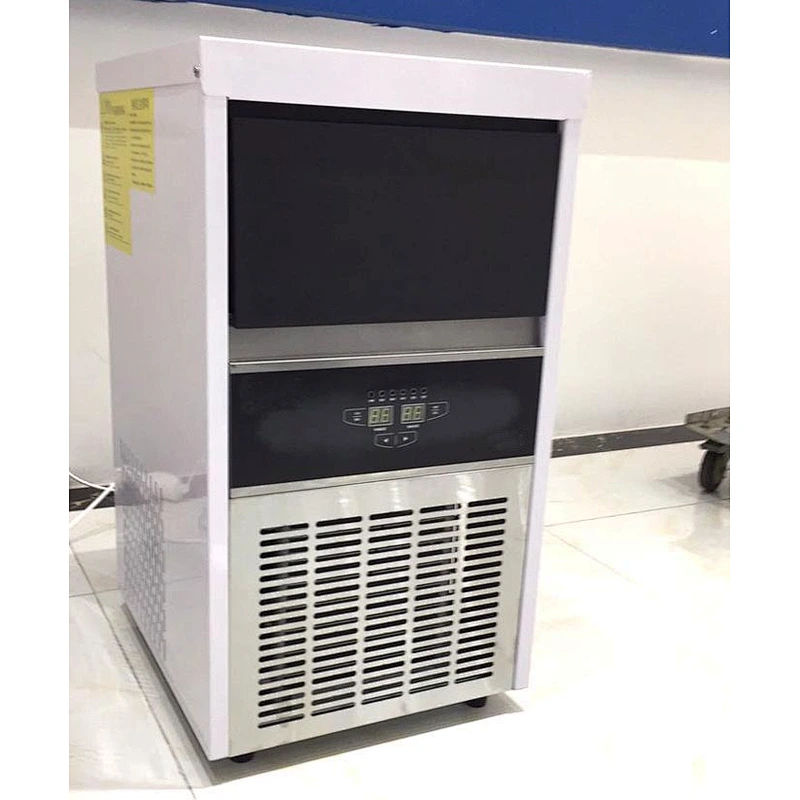

2018 refrigerator ice maker machine and tube ice maker machine with CE
Specification for ice machine:
| Dimension | 822*615*1050 MM |
| Voltage | 220V50Hz |
| Power | 0.65 KW |
| Ice Shape | Cube |
| Cube Ice Dimension | 23*23*23 MM |
| Daily Production | 90 KG/Daily |
| Storage | 45KG |
| Ice Grid Quantity | 108 |
| Refrigerant | R134A |
| Refrigerant Consumption | 850G |
| Cooling Type | Air Cooling |
| Compressor | Zanussi |
Features of our refrigerator ice maker machine:

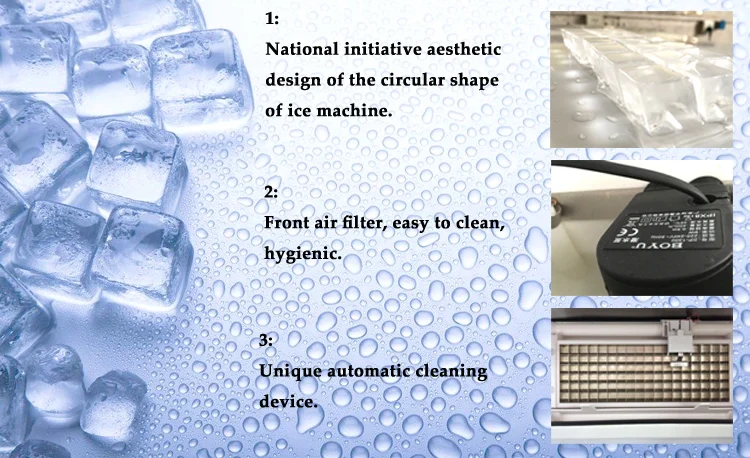

1. national initiative with the aesthetic design of the circular shape of ice machine.
2. front air filter, easy to clean, hygienic.
3. unique automatic cleaning device, the ice is more clean, hygienic.

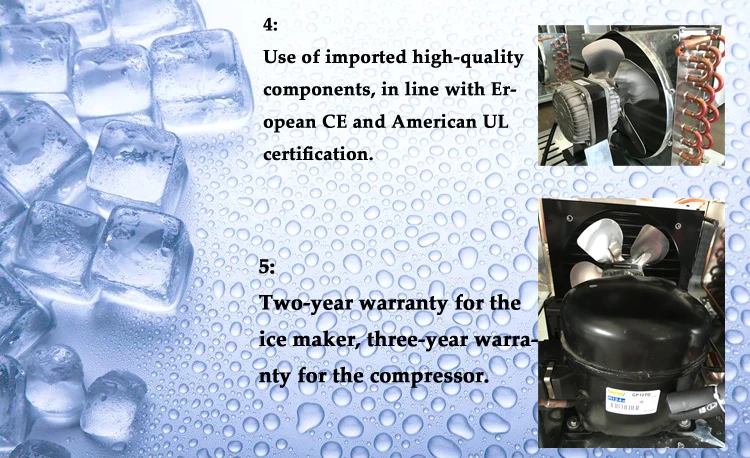

4. the use of imported high-quality components, in line with European CE certification.
5. vertical ice maker machine warranty of two years, three-year compressor warranty.
6. Big Output Square Ice Machine Or Square Ice Maker.
SY-IM Series tube ice maker machineTechnical Parameter
| Item | Daily Production | Storage Capacity | Dimension | Power | Refrigerant | Ice Cube Dimension |
| SY-IM20 | 20 KG /Daily | 8KG | 415x460x750 MM | 200 W | R134a | 23*23*23 MM |
| SY-IM25 | 25KG /Daily | 10KG | 505x504x800 MM | 290 W | R134a | 23*23*23MM |
| SY-IM45 | 45KG /Daily | 20KG | 502x560x880 MM | 350 W | R134a | 23*23*23MM |
| SY-IM60 | 60KG /Daily | 35KG | 705x610x1000MM | 480 W | R134a | 23*23*23MM |
| SY-IM90 | 90 KG /Daily | 45KG | 822x615x1050 MM | 650 W | R134a | 23*23*23 MM |
| SY-IM120 | 120KG /Daily | 45KG | 822x615x1050MM | 700 W | R134a | 23*23*23MM |
| SY-IM150 | 150KG /Daily | 250KG | 750*880*1250MM | 760 W | R404a | 23*23*23MM |
| SY-IM250 | 250KG /Daily | 250KG | 750*880*1370MM | 1080 W | R404a | 23*23*23MM |
| SY-IM350 | 350KG /Daily | 250KG | 750*880*1420MM | 1285 W | R404a | 23*23*23MM |
| SY-IM400 | 400KG /Daily | 250KG | 750*880*1450MM | 1400 W | R404a | 23*23*23MM |
| SY-IM500 | 500KG /Daily | 250KG | 750*870*1475MM | 1550 W | R404a | 23*23*23MM |
| SY-IM700 | 700KG /Daily | 350KG | 1300*890*1580MM | 2300 W | R404a | 23*23*23MM |

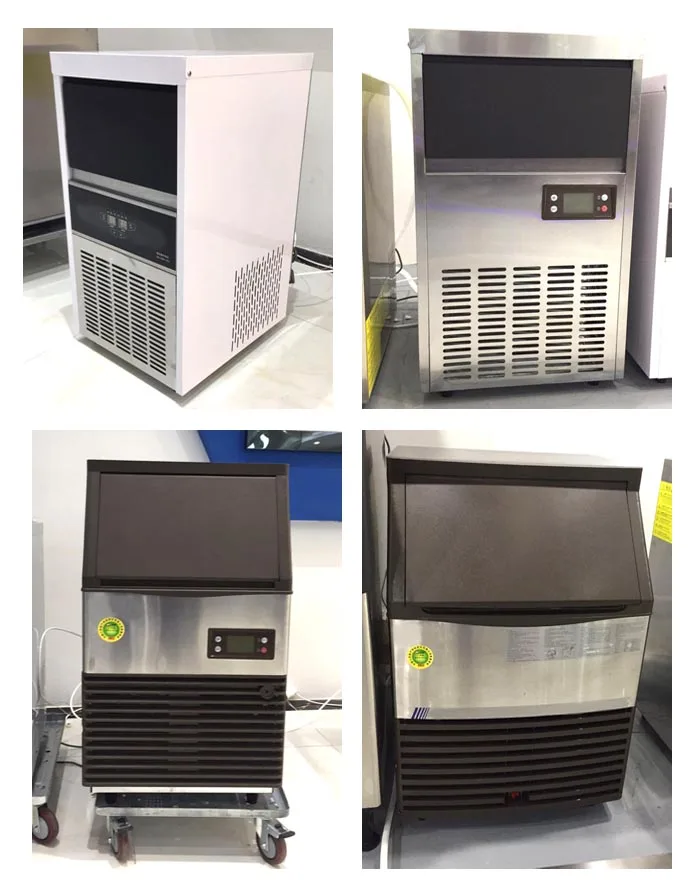

Other ice maker machine:

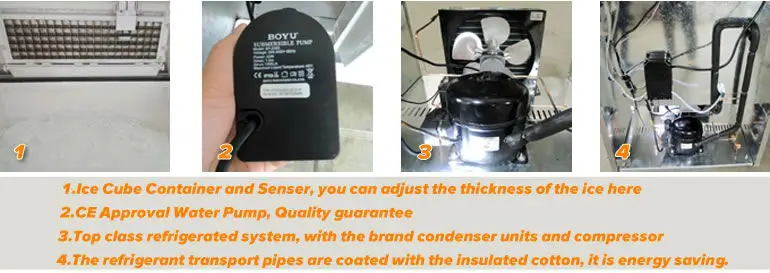

SY-IM Serise Ice Maker Machine Advantages

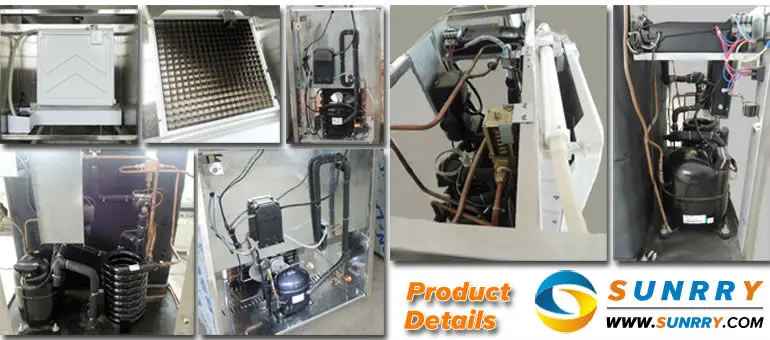

SY-IM Serise Ice Maker Machine Details
SY-IM Serise Ice Maker Machine Application
