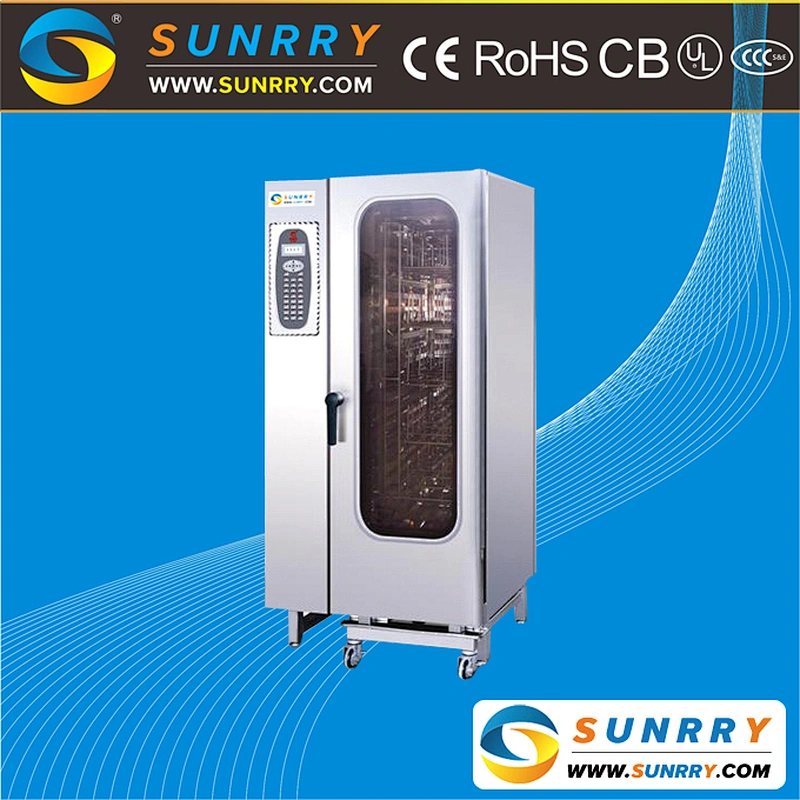

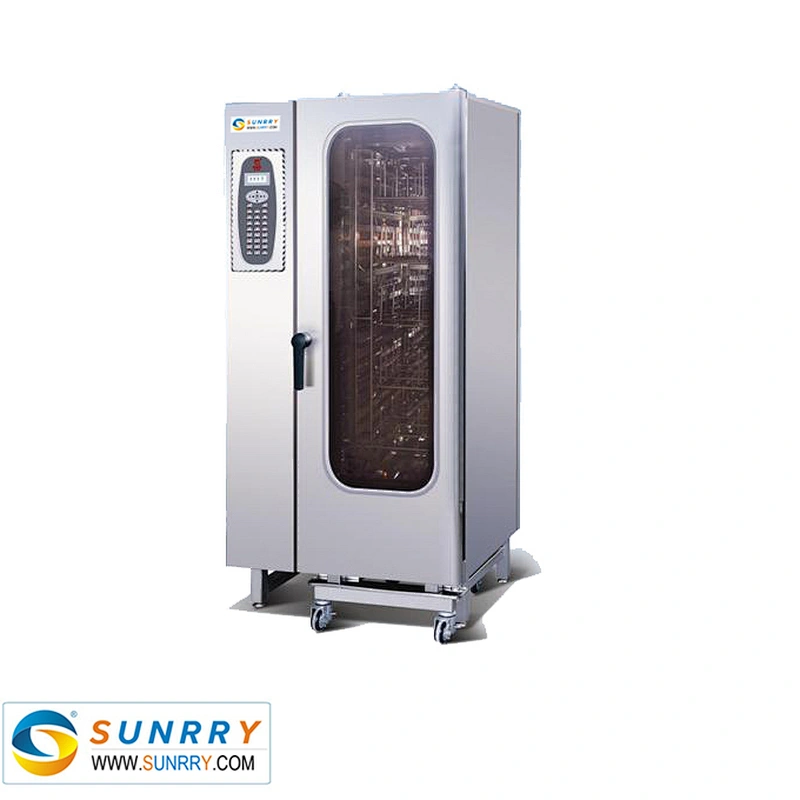

Electric Steaming Baking Oven Professional Baking Oven Steam 40 Trays Electric Combi Steamer Oven
20-tray Combi Oven | |
Model | SY-CV20B |
Dimension | W1170xD1000xH1880mm |
Capacity | 1/1x1”GN,40pcses |
Bore Size | W700xD860xH1498mm |
Height Per Tray | 60mm |
Voltage | 3N~380V/50Hz |
Power | 53Kw |
Steam Flow | 30L/H |
Water Inlet Size | R 3/4” |
Water Outlet Size | 1 1/4” |
Air Inlet | Φ60 |
Air Exhaust | Φ60 |
Oven Cleaning Mixture Inlet | Φ45 |
Soft Water Inlet | 3/4” |
Washing Squirt Gun Connector | 3/4” |
Spare Parts | |
Cart | 1 pcs |
Cart Handle | 1 pcs |
Grill | 5 pcs |
Grid | 5 pcs |
BBQ Grill | 5 pcs |
Squirt Gun Base | 1 pcs |
Squirt Gun | 1 pcs |
Squirt Gun Connecting Pipe | 1 pcs |
Soft Pipe Of Water Inlet | 3 pcs |
Softening Filter | 1 set |
Silicone Tube(IDφ42*3.5) | 1 meter |
M4*20round S.S Bolt | 2 pcs |
Features:
◊ Stainless steel structure with elegant appearance.
◊ No hide waste and easy to clean with circular structure for inner connection.
◊ Air-heated by vortex flow fan,high and low speed for your choice,balanced heating to ensure the cook food with bright color,fragrant smell and delicious taste.
◊ Designed with temperature controller and timer.Temperature and time can be adjustable accordinng to different food.
◊ Equipped with functions including humidification and temperature adjustment according different food.
◊ With a storage function,the PC board can memorize hundreds of menus.The operator can prepare the common menus in advance and then make them stored with reasonable numbering in the PC board.When in need,just press the number keys on the control board.It is very easy to operate.
◊ With automatic cleaning function and the cleaning procedures has already been pre-written,just keep on pressing the cleaning key when you need the cleaning service.
◊ This oven is equipped wih chicken-grilling rack,with grid,grilling meash and other accessories.
Remark:
The following accessories can be used:
1.Stainless steel grid-shelf (Dimension:536x334mm)
2.Food tray:GN1/1, GN1/2,GN1/3,GN1/4,GN1/6,depth from 20 to 200mm Except GN1/1,other trays can be used with the grid-shelf.User can select the above accessories at will.
SY-CV20B Electric Combi Steamer Oven Application
